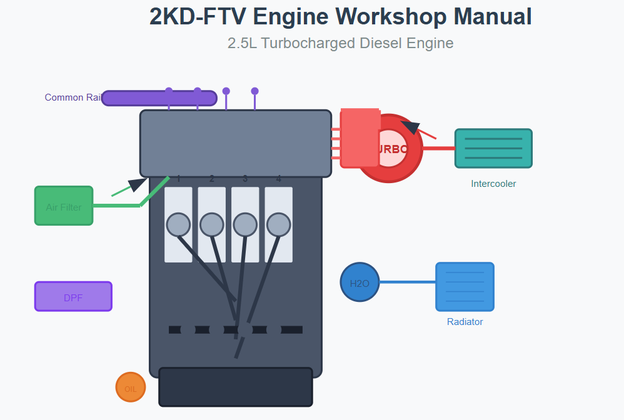

2KD-FTV Engine Workshop Manual
Toyota 2KD-FTV Engine Repair Manual — a detailed repair and maintenance manual for the 2KD-FTV diesel engine (2.5 D-4D). The manual contains device diagrams, electrical circuits, diagnostic and adjustment procedures, error code tables, as well as instructions for removing, installing and overhauling units. The manual will help in troubleshooting, maintenance and restoring engine performance.
The 2KD-FTV engine is widely used in Toyota Hilux, Hiace, Fortuner and other vehicles, features a Common Rail system and turbocharging, providing a balance of power and economy.
| Password for PDF: car-inform.com | |
| 2KD Engine Blok Workshop Manual | Download |
| ECU 2KD-FTV Wiring Diagram. Electrical System | Download |
| 2KD-FTV Engine Electrical Wiring Diagrams | Download |
| 1KD-FTV AND 2KD-FTV Cylinder Head, Cylinder Block, Balance Shaft, Piston | Download |
| 2Kd-Ftv Engine Mechanical Torque Specifications: | Download |
Hilux, Kijyang Innova 1KD/2KD Engine Service Manual
| 1KD/2KD Engine Product application list | Download |
| 1KD/2KD Engine Outline | Download |
| 1KD/2KD Engine Construction and operation | Download |
| 1KD/2KD Engine Diagnosis system | Download |
Typical 2KD-FTV malfunctions and their causes
Common Rail injector wear
Causes: low fuel quality, fuel system contamination, natural wear.
Symptoms: difficult starting, unstable operation, increased fuel consumption, smoke.
Turbocharging problems
Causes: turbine bearing wear, turbine geometry clogged with soot.
Symptoms: loss of power, boost error, smoke during acceleration.
EGR system clogging
Causes: operation at low speeds, low-quality fuel, soot.
Symptoms: loss of traction, increased consumption, errors in the recirculation system.
Engine overheating
Causes: cooling system malfunction (radiator, pump, thermostat), antifreeze leak.
Symptoms: increased temperature, risk of cracks in the cylinder head.
Wear of the high-pressure fuel pump
Causes: poor quality diesel fuel, insufficient lubrication.
Symptoms: drop in fuel pressure, injection system errors.
Timing belt problems
Causes: untimely replacement, use of non-original parts.
Symptoms: unstable operation, risk of valve damage.
Smoke (black, white or blue smoke)
Causes: faulty injectors, turbine, EGR, oil getting into the cylinders.
Symptoms: different smoke colors depending on the breakdown.
